Harvester for Both Wheat and Rice 4gl120A

Weifang Shengchuan Machinery Co.,Ltd | Updated: Jan 19, 2018

Harvester for Both Wheat and Rice 4gl120A Basic Info

  • Model NO.: 4GL120A

  • Application: Rice, Wheat, Straw

  • Harvest method: Cutting

  • Reaper Transmission: Hard Shaft

  • Certification: SGS, ISO9001:2008, CE

  • Reaper Condition: New

  • Origin: China

  • Type: Standing-Typed

  • Reaper Power Source: Mini Tiller or Self Propelled Tractor

  • Drive Type: Gear Drive

  • Portable Harvester Type: Side Hanging Type

  • Reaper Color: Red

  • Application Field: Agriculture, Livestock, Aquaculture, Forestry

  • Specification: 1000× 1750× 570

  • HS Code: 8433599090

Harvester for Both Wheat and Rice 4gl120A Product Description






Harvester for Both Wheat and Rice 4gl120A Details:


Model NO.: 4GL120A                                       Type: Hand-Type Harvester
Application: Rice, Wheat, Soybean, Straw          Power Source: Mini Tiller or Self Propelled Tractor
Harvest method: Standing-Typed                        Drive Type: Gear Drive
Transmission: Hard Shaft                                Portable Harvester Type: Side Hanging Type
Certification: ISO9001:2008, CE                       Color: Red
Condition: New                                               HS Code: 8433599090
Cutting Width(Mm): 1200                                Placing Type: Sidewise&Banded Placed
Procuctivity(M2/Hour): 2000-2600                    Cutting Device: Reciprocating Knife Bar
Net Weight(Kg): 90                                         Gross Weight: 100
Packing Size(L*W*H): 1.45*0.75*0.7                Origin: China
Application Field: Agriculture, Livestock, Aquaculture, Forestry
Matched Power: Mini Tiller and Self Propelled Tractor




Harvester for Both Wheat and Rice 4gl120A Main Technical Specifications:



120A  ItemIndex
Model4 GL- 120A
Type of Cutting TableStanding-Typed
Cutting Width (mm)1200
Min Cutting Height (mm)≥50
Placing TypeSidewise & Banded Placed
Productivity (M2)2000-2600
Overall Dimensions (mm) (L*W*H)1000*1750*570
Total Weight (Kg)Around 90
Matched Power (kw)4.5 (3.1horsepower)  6<4.5horsepower>
Teeth Space (mm)127
Running Speed of Crank (r/min)550
Diameter of Star Wheel (mm)280
Working Speed (km/h)2.6~3.6
Chain Speed (m/s)2.24
Number of Operator1

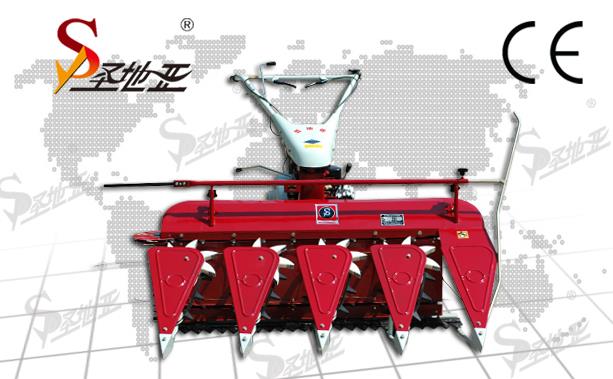

Harvester for Both Wheat and Rice 4gl120A.jpg
