Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series)

Weifang Shengchuan Machinery Co.,Ltd | Updated: Mar 23, 2018


Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series) Basic Info.


Model NO.:1LZ Series


Tillage Machinery Specification:ISO 9001: 2000




HS Code:8432809000


Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series) Product Description

Working width: 3.6-7.2m
Tillage Machinery Working depth: 140mm
Matched tractor power: 65HP-200HP
Tillage Machinery Productivity: 2-5ha/h

The Once-over tillage machine can complete the pulverizer, soil transporting, soil mixing, leveling before sowing, repression, and can be directly prepared flat seedbed, they can improve the efficacy, reduce the cost. After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.

The machine is suitable for growing out robust crop, and the same time you can Obtain greater benefits, All of these can be achieved depends on 1LZ series joint tillage machine, Working width from 3.6m to 7.2m, it can be content with different customer's requirement.


Model Unit 1LZ-3.6 1LZ-4.2 1LZ-5.4 1LZ-7.2
Max width m 3.6 4.2 5.4 7.2
Working depth   mm 140
Dia. of disc   mm 460
Blade spacing   mm 170
Harrow group angle 3, 6, 9, 11, 13
Operating speed   km/h 7~9
Productivity   ha/h 2.28 2.66 3.33 4.44
Transport clearance mm > 280
Matched power   HP > 65 > 80 > 100 > 120
Overall dimension   cm 660× 380× 100 660× 440× 100 660× 560× 100 700× 750× 100

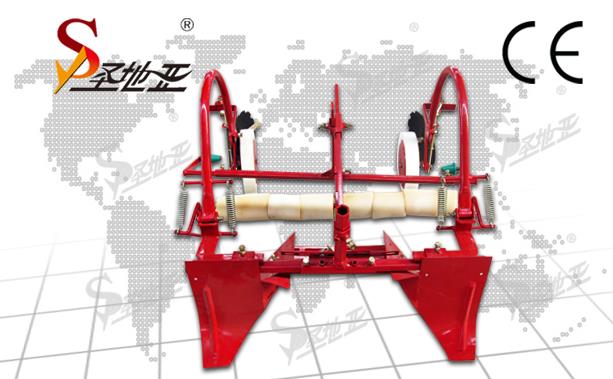

Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series).jpg
