Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder

Weifang Shengchuan Machinery Co.,Ltd | Updated: Oct 14, 2017



Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Basic Info.



Model NO.:4KUN-50



Type:Portable Harvester



Application:Rice, Wheat, Straw



Reaper Power Source:Gasoline



Harvest method:Cutting



Drive Type:Gear Drive



Transmission:Hard Shaft



Reaper Portable Harvester Type:Side Hanging Type



Certification:QS, ISO9001:2008, CE



Color:Red



Condition:New



Application Field:Agriculture



Package:Wooden Case



Specification:ISO9001



Reaper Origin:China



HS Code:843330000



Product Description



Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Main Features


1. Optimized threshing and cleaning mechanism with double shakers for re-threshing.
2. Great transmission and torque and swerve agilely.
3. Capacious grain tank with optional unloading devices.
4. This type of harvester growls like a lawnmower, and it's not far off in size. The harvester is pushed  by hand through the row.
5. The powerful MITSUBISHI 6HP gasoline engine is easy to starting, and with low noise, and reliable for easy working.
6. The steer control handlebar can be freely adjusted to up, down, left, or right. There are 16 shift for being adjusted to left and right. The handlebar can be 360° Rotating.
7. During working in sloping fields or height limited garden, there are 5 shift for the Reaper-binder 4KUN-50 to be adjusted to fit for different farmer's height.
8. It is very economical, efficient, practical, light weight, flexible easy operation.


Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Technical Specifications

Model 4KUN-50 Reaper & Binder
TypeWalking/ self-propelled
Overall sizes(L*W*H) (mm)2050x800x1055
N.W. (kg)220
Matched motorMitsubishi GT600
Rated Power (kw)4.05
Rated rotor speed (r/min)1800
Main transmissionBelt and transmission shaft
Clutch typeUp tight wheel
Drive wheel typeRubber wheel 19-90-8
Rotate balde q'ty (pc)9
Cutting height (mm)≥80~150 Adjustable
Binder typeautomatic
Diameter of bale (mm)≥100
Connect type with rotate bladedirectly
Binding height (mm)270
Working rows (row)2
Working width (mm)600
Working efficiency (km/h.)1.4~3.8
 Pure Productivity (hm2/h.)more than0.12
Packing Size (mm)1810*790*1150
20GP Container20 sets

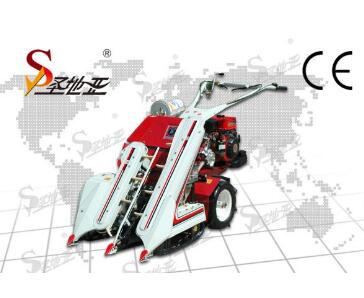

Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder.jpg
