Self Propelled 4lz-3.5 Mini Combine Rice Harvester

Weifang Shengchuan Machinery Co.,Ltd | Updated: Dec 09, 2017

Self Propelled 4lz-3.5 Mini Combine Rice Harvester Basic Info

  • Model NO.: 4LZ-3.5

  • Application: Cotton, Rice, Soybean, Tubers

  • Harvest method: Picking

  • Transmission: Soft Shaft

  • Certification: CE

  • Condition: New

  • Engine Type: CF25m

  • Rated Power/Speed (Kw/Rpm): 18/2300

  • Cutting Width (mm): 1600

  • Cutting Table Auger Form: Retractable Gear

  • Reaper Quantity of Reel Plate: 4

  • Origin: China

  • Type: Horizontal Cut Harvester

  • Power Source: Diesel

  • Drive Type: Gear Drive

  • Portable Harvester Type: Backpack Type

  • Reaper Color: Red and White

  • Application Field: Agriculture, Livestock, Aquaculture, Forestry

  • Size: 1.6meter Wide

  • Weight (Kg): 1300

  • Rated Feed Capacity (Kg/S): 1.2

  • Reaper Reel Diameter (mm): 750

  • Conveyor Belt Form: Tooth Type Chain

  • Reaper


  • HS Code: 8433510090

Self Propelled 4lz-3.5 Mini Combine Rice Harvester Product Description

Best Price agriculture machines Mini Combine Rice Harvester


Self Propelled 4lz-3.5 Mini Combine Rice Harvester Advantages:

1.Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
2.High threshing ability, low broken rate. Low lost rate
3.Thorough clearance with double shakers for re-threshing
4.Famous brand engine with large power and stable performance

Conveyor belt form Tooth type chain
    We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors ,implements, wheel excavators, crawler excavators,backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators ,and so on.

    With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada ,England, Poland, Dutch, Italy, Russia, India, Main countries of Africa.......

Warranty and payment term:

1) Payment terms: 30% T/T deposit,balance before shipment.

2) Delivery time: 25-30 days after we receive the deposit

3) Warranty period:1 year or 2000 working hours which comes first.


Self Propelled 4lz-3.5 Mini Combine Rice Harvester Parameters:


ltem\ Model

4LZ-2.0

Cutting width

2000mm

Working capacity

0.47 ha/h

Fuel consumption

8-10L/h

engine horsepower

70HP

Weight(kg)

2650

Track

350mm*90mm*46

   Dimensions at work,LxWxH(mm)

5240x2690x2675

Total losses(%)

Rice≤3.0 ,Wheat≤1.5

lmpurity rate(%

≤2.0

Breakage rate(%)

≤1.5

Reliability(%)

≥93

Feed rate(kg/s)

2.0

Ground pressure(kpa)

≤24

Min.ground clearance(mm)

≥200

grain Tank

0.7m3 (storage 500kg rice)

Cleaning type

Double sieves + blower + re-thresher

Grain unloading method

Sacked & Auto unloading

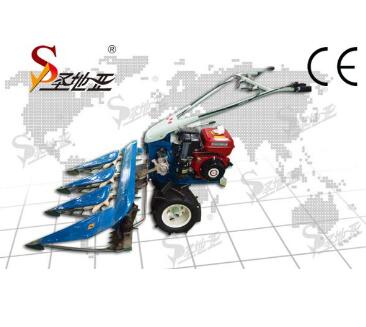

Self Propelled 4lz-3.5 Mini Combine Rice Harvester.jpg
