Tiller for Sale/Farm Cultivating Machines/Once-Over Tillage Machine

Weifang Shengchuan Machinery Co.,Ltd | Updated: Jun 13, 2018



Tiller for Sale/Farm Cultivating Machines/Once-Over Tillage Machine Basic Info.



Model NO.:1LZ-9.0



Type:Disc Plough



Tillage Machinery Application Field:Agriculture, Livestock, Aquaculture



Farming Policy:Dry Cultivating Machinery



Power Source:Tractor



Operation:Continuous Running Operation, Soil Preparation Machinery



Color:Yello



Tillage Machinery Price:Best



Quality:High



Warranty:12 Month



Tillage Machinery  Specification:ISO 9001: 2000



Origin:China



HS Code:8432809000



Tiller for Sale/Farm Cultivating Machines/Once-Over Tillage Machine Product Description

    agricultural machinery/Joint tillage machine/Once-over Tillage Machine/farm mahcinery/cultivator
Warranty:12 month
Working width: 3.6-9.0m
Working depth: 140mm
Matched tractor power: 80HP-400HP
Productivity: 2-5ha/h

The Once-over tillage machine can complete the pulverizer, soil transporting, soil mixing, leveling before sowing, repression, and can be directly prepared flat seedbed, they can improve the efficacy, reduce the cost. After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.

The machine is suitable for growing out robust crop, and the same time you can Obtain greater benefits, All of these can be achieved depends on 1LZ series joint tillage machine, Working width from 3.6m to 7.2m, it can be content with different customer's requirement.



Model Unit 1LZ-3.6 1LZ-4.2 1LZ-5.4 1LZ-7.2
Max width m 3.6 4.2 5.4 7.2
Working depth   mm 140
Dia. of disc   mm 460
Blade spacing   mm 170
Harrow group angle 3, 6, 9, 11, 13
Operating speed   km/h 7~9
Productivity   ha/h 2.28 2.66 3.33 4.44
Transport clearance mm > 280
Matched power   HP > 65 > 80 > 100 > 120
Overall dimension   cm 660× 380× 100 660× 440× 100 660× 560× 100 700× 750× 100

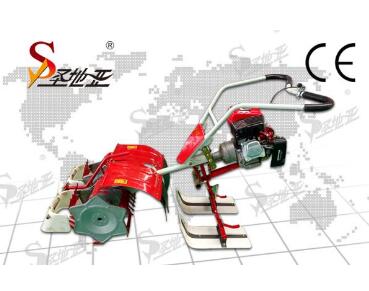

Tiller for Sale/Farm Cultivating Machines/Once-Over Tillage Machine.jpg
