Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale

Weifang Shengchuan Machinery Co.,Ltd | Updated: Jul 07, 2017

Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Basic Info

  • Model NO.: tns

  • Application Field: Agriculture, Livestock, Aquaculture, Fisheries, Forestry

  • Power Source: Diesel

  • Traction Type: Traction

  • Arbor Configuration: Vertical Shaft

  • Color: Upon Your Request

  • Package: Wood Case

  • Origin: Shandong, China

  • Type: Rotary Tiller

  • Farming Policy: Wet and Dry Field

  • Operation: Soil Preparation Machinery, Movable Operation

  • Drive Type: Gear Drive

  • Certification: SGS, ISO9001

  • Specification: CCC/ CE

  • HS Code: 8701100000

Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Product Description

Power Tiller Model

TNS-80

CHASSIS

Over Dimensions(mm)

2050x710x1235

Weight (without engine)

179 Kg



Tilling Width and No/s of Blades



Optional

Standard 480mm(18-1/8in) 14 Blades

Max 600mm(23-5/8in) 16 Blades

Speeds

Forward

6 speeds

Reverse

2 speeds

Tilling

4 speeds (2 speeds by changing auxiliary sprockets)

Tires

5-12

Brake

Inner Expansion Type

Main Clutch

Dry Multi-plate Type

Steering Clutch

Claw Type Clutch

Power Transmission System

Engine to Main Shaft: 2V-Belts

Main shaft to wheel Axle: Gear

Transmission to Blade Axle: Chain

Wheel Tread

390-780mm(15-3/8~30-3/4in)

ENGINE

Mounted Engine

For Use with TNS-80 Chassis

Engine model

RV80 (Original Viet Nam VIKYNO, Direct Injection)

Type

Horizontal Water Cooling 4 Stroke Single Cylinder Diesel Engine

BorexStock(mm)

82x84

Rated Output(HP/RPM)

7.0/2200

Maximum

8.0/2400

Fuel (L)

Light Diesel Oil (9L)

Lubricating Oil (L)

SAE30,20,10W-30 (2L)

Starting System

Double Speed Handle Manual

Cooling System

Radiator Cooling

Engine Weight

79 Kg

Specific Fuel Consumption

185g/HP.hr at continuous rated output

Cooling Water Capacity (L)

1.6

CONTAINER LOADING

30 units

80 units

Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Main Specification for TNS-80 (Kubota Model) Power Tiller


EINGEN MODELCP120
TypeWater-cooled, 4-stroke, horizontal, diesel engine
Bore x stroke (mm)94 x 90
Displacement(cc)624
Compression ratio21:1
Combustion chamber typeSwirl-chamber
Rated output hp(kW)11(8.09)
Max output hp(kW)12(8.8)
Rated speed ( rpm )2400
Max torque (N.m)38.2(3.9)
Speed at max.torque ( rpm )1850
Fuel consumption at rated output g/kWh( g/hph )286 ( 210 )
Fuel tank capacity (L)10
Lubrication methodPressure combined with splashing
Cooling systemRadiator type
Fuel tank capacity (L)10
Crankcase oil capacity (L)2.3
Cooling water capacity (L)2.1
Starting methodHand starting or electric starting
Head lamp12V 45W/45W

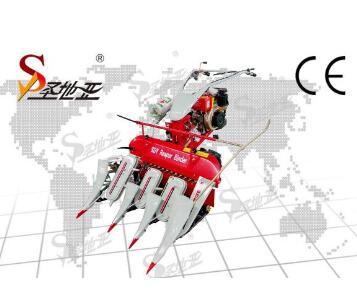

 Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale.jpg
