Top Quality Model: 4lz-0.8 Mini Harvester

Weifang Shengchuan Machinery Co.,Ltd | Updated: May 15, 2018

Top Quality Model: 4lz-0.8 Mini Harvester Basic Info

  • Model NO.: 4LZ-0.8

  • Application: Rice

  • Reaper Harvest method: Cutting

  • Transmission: Soft Shaft

  • Certification: ISO9001:2008

  • Condition: New

  • Overall Dimensions(L*W*H): 2805*1700*1700mm

  • Reaper Type: Portable Harvester

  • Power Source: Diesel

  • Drive Type: Vee belt

  • Portable Harvester Type: Side Hanging Type

  • Color: Red

  • Reaper Application Field: Agriculture

  • Working Efficiency: 1-2.5 Mu/H (0.066-0.33ha/H)

  • Specification: GB

  • HS Code: 8433599090

Top Quality Model: 4lz-0.8 Mini Harvester Product Description


      The product is conjoined structure, convenient installation, tire track suitable for deep mud area, double cutter with high harvesting efficiency, low fuel consumption ,outside circle structure to prevent-weeding,clean-threshing,less-lost,big-heave amplitude of cutting platform, and suitable for different height of paddy. Winnowing is not affected by the dew. It is the best choice for village household to harvest paddy in mountain and hilly area.

Top Quality Model: 4lz-0.8 Mini Harvester Technical Parameters:

Model4LZ-0.8
Overall Dimensions(L*W*H)2805*1700*1700mm
Wight665kg
Swath1200mm
Feeding in speed0.8kg/s
Min.ground clearance180mm
Matched powerH14-16
H14-16 water-cooled diesel engine
Total loss rate≤3.0%
Impurities rate≤2.0%
Crashed rate≤1.5%
Working Efficiency1-2.5 mu/h (0.066-0.33ha/h)

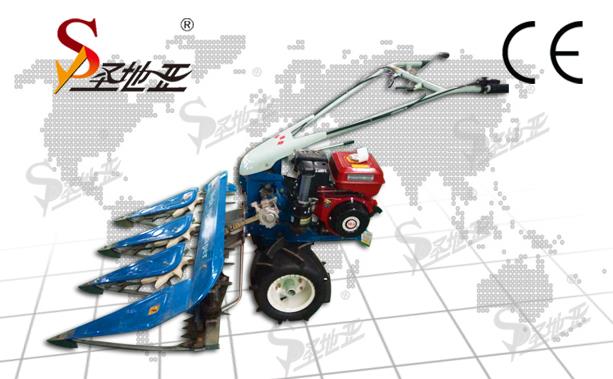

Top Quality Model: 4lz-0.8 Mini Harvester.jpg
