Wheat and Rice Harvester Head 4gl100

Weifang Shengchuan Machinery Co.,Ltd | Updated: Dec 20, 2017

Wheat and Rice Harvester Head 4gl100 Basic Info

  • Model NO.: 4GL100

  • Application: Rice, Wheat, Straw

  • Harvest method: Cutting

  • Reaper Transmission: Hard Shaft

  • Certification: SGS, ISO9001:2008, CE

  • Condition: New

  • Origin: China

  • Type: Vertical Cut Harvester

  • Reaper Power Source: Mini Tiller or Self Propelled Tractor

  • Drive Type: Gear Drive

  • Portable Harvester Type: Side Hanging Type

  • Reaper Color: Red

  • Application Field: Agriculture, Livestock, Aquaculture, Forestry

  • Reaper Specification: 51000× 1550× 570

  • HS Code: 8433599090

Wheat and Rice Harvester Head 4gl100 Product Description



Wheat and Rice Harvester Head 4gl100 Details:


Model NO.: 4GL100                                         Type: Hand-Type Harvester
Application: Rice, Wheat, Soybean, Straw          Power Source: Mini Tiller or Self Propelled Tractor
Harvest method: Cutting                                 Drive Type: Gear Drive
Transmission: Hard Shaft                                Portable Harvester Type: Side Hanging Type
Certification: ISO9001:2008, CE                       Color: Red
Condition: New                                               Model: 4gl100
Cutting Width(Mm): 1000                                Placing Type: Sidewise&Banded Placed
Procuctivity(M2/Hour): 1600-2300                    Cutting Device: Reciprocating Knife Bar
Net Weight(Kg): 70                                         Gross Weight: 100
Packing Size(L*W*H): 1.25*0.75*0.65              Origin: China
HS Code: 8433599090
Application Field: Agriculture, Livestock, Aquaculture, Forestry
Matched Power: Mini Tiller and Self Propelled Tractor




Wheat and Rice Harvester Head 4gl100 Main Technical Specifications:



ItemIndex
Model4 GL - 100
Type of Cutting TableVertical
Cutting Width (mm)1000
Min Cutting Height (mm)≥30
Placing TypeArticle lateral release
Productivity (M2)2.5-3.5
Overall Dimensions (mm) (L*W*H)1000*1550*570
Total Weight (Kg)Around 70
Matched Power (kw)3.64  (4.5HP)
Teeth Space (mm)127
Running Speed of Crank (r/min)550
Diameter of Star Wheel (mm)280
Working Speed (km/h)2.6~3.6
Chain Speed (m/s)2.24
Number of Operator1

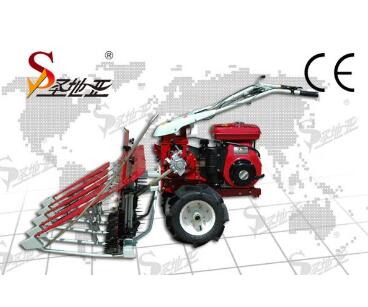

Wheat and Rice Harvester Head 4gl100.jpg
