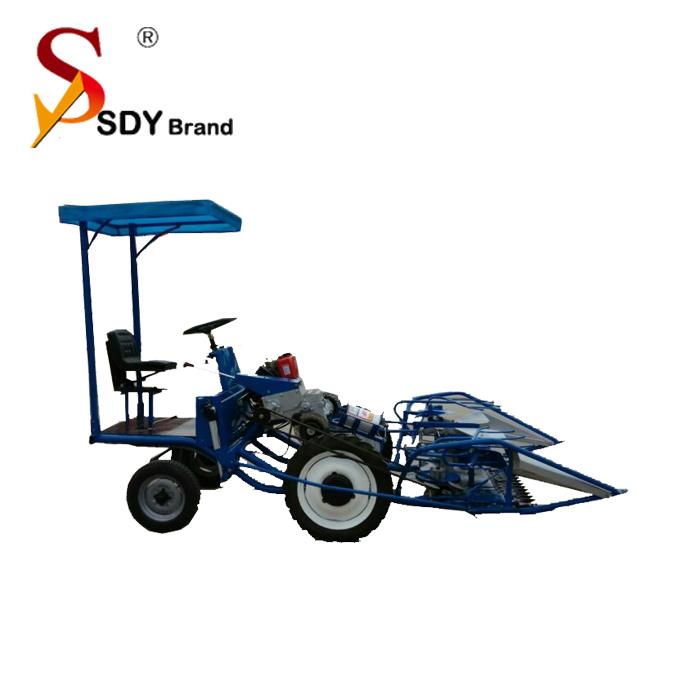

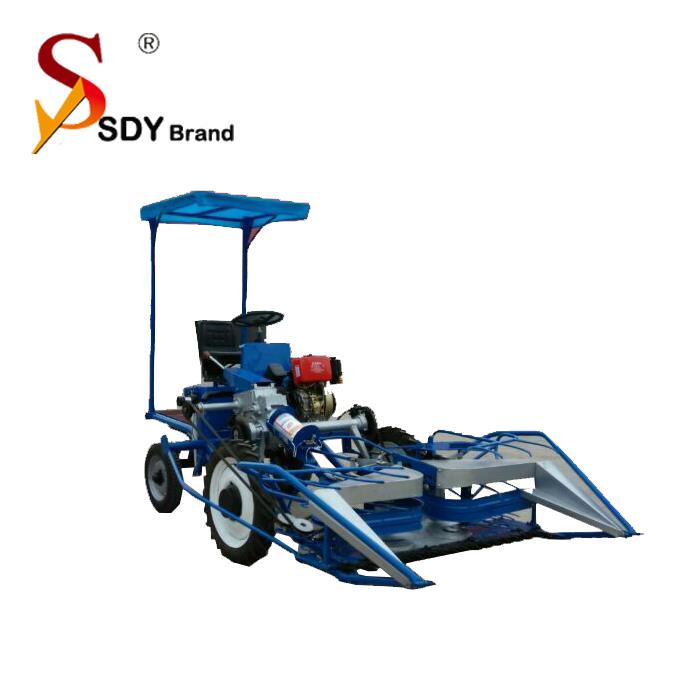

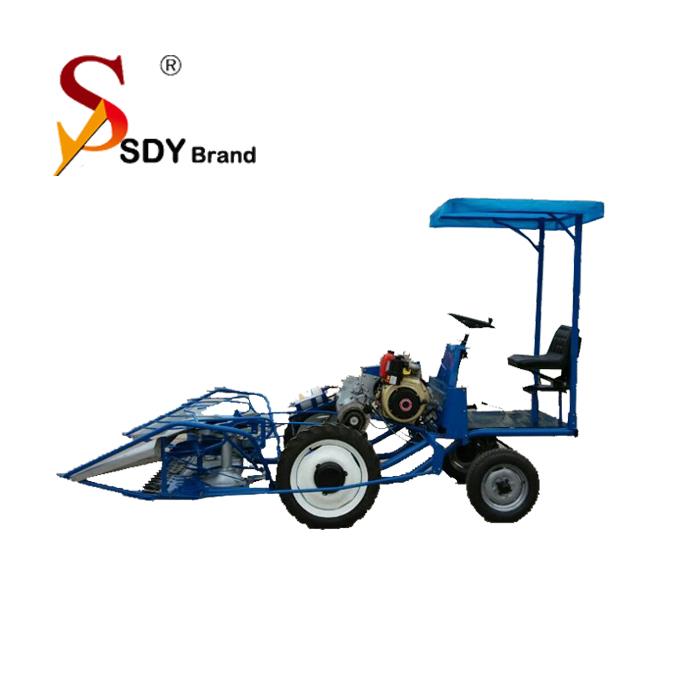

Four Wheel Reaper Binder Big Size Harvester Cutting Rice And Wheat And Other Grain
Technical parameters Item Specification overall size（L*W*H） 3550*1950*1330mm(without overhead guard)（L*W*H） Total weight 640.00kgs Engine Model 192F DIESEL ENGINE Engine type Single-cylinder, vertica···
Product details
| Technical parameters | ||
| Item | Specification | |
| overall size（L*W*H） | 3550*1950*1330mm(without overhead guard)（L*W*H） | |
| Total weight | 640.00kgs | |
| Engine | Model | 192F DIESEL ENGINE |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled,direct injection | |
| Displacement | 0.499L | |
| Output shaft rated speed(rpm) | 1800pm | |
| Calibration power | 7.7/10.5 kw/ps | |
| Start mode | electric starter | |
| Lubricating oil capacity | 1.65L | |
| Use fuel / tank capacity | diesel （0#）/6L | |
| Walking unit | Gears/speed km/h |
1st:2.9;2nd：5.3； 3rd：8.5；reverse：2.1； |
| Clutch type |
Main clutch -dry dual-plate clutch, harvesting unit clutch-jaw clutch |
|
| steering system |
steering wheel control, differential steering system |
|
| Minimum turning radius | 3M | |
| Brake mode | hydraulic disc brakes | |
| Transmission mode | shaft , flexible connection | |
| Harvesting unit | Cutting width | 1400mm |
| Cutting platform lifting mode | Electric (self-locking) | |
| Binding height: | 750px up stubble | |
| Total loss rate | ≤1% | |
| Bundling rate | ≥95% | |
|
Productivity |
0.4hm2/h | |
| Fuel consumption | 1.8-2.3L/H | |
Shengchuan Machinery is one of the leading Reaper Binder manufacturers and suppliers, we can offer you lower price four wheel reaper binder big size harvester cutting rice and wheat and other grain. Welcome to buy discount products at best price form our factory.
