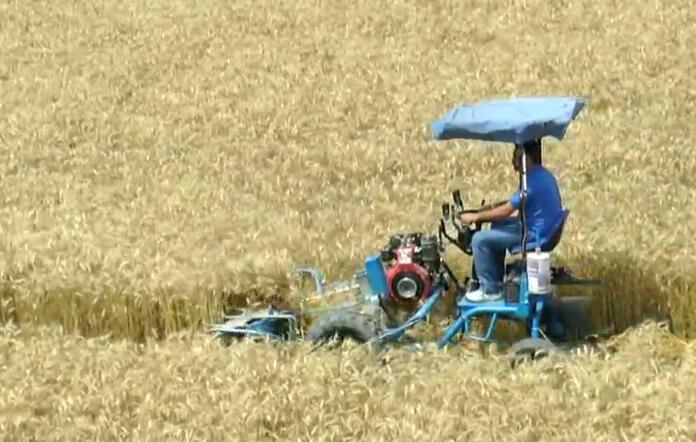

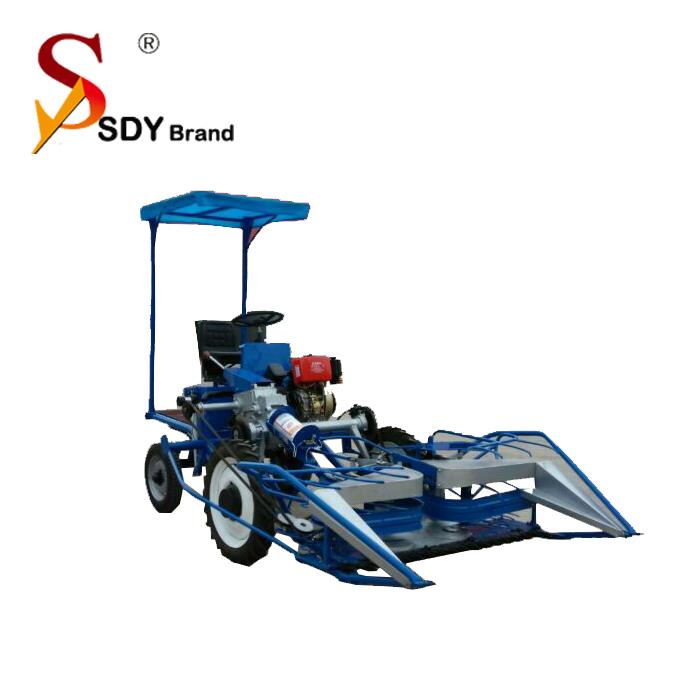

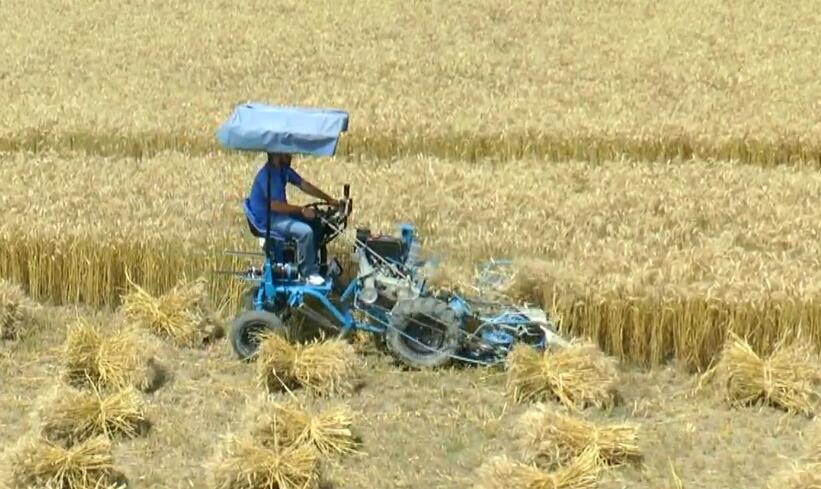

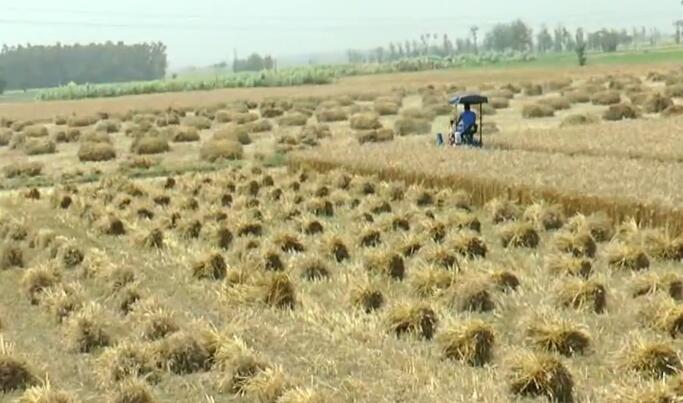

Four-wheel Reaper Binder Cutting Rice And Wheat In Dry Land Or Paddy Field Higher Efficiency
Technical parameters Item Specification overall size（L*W*H） 3550*1950*1330mm(without overhead guard)（L*W*H） Total weight 640.00kgs Engine Model 192F DIESEL ENGINE Engine type Single-cylinder, vertica···
Product details
| Technical parameters | ||
| Item | Specification | |
| overall size（L*W*H） | 3550*1950*1330mm(without overhead guard)（L*W*H） | |
| Total weight | 640.00kgs | |
| Engine | Model | 192F DIESEL ENGINE |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled,direct injection | |
| Displacement | 0.499L | |
| Output shaft rated speed(rpm) | 1800pm | |
| Calibration power | 7.7/10.5 kw/ps | |
| Start mode | electric starter | |
| Lubricating oil capacity | 1.65L | |
| Use fuel / tank capacity | diesel （0#）/6L | |
| Walking unit | Gears/speed km/h |
1st:2.9;2nd：5.3； 3rd：8.5；reverse：2.1； |
| Clutch type | Main clutch -dry dual-plate clutch, harvesting unit clutch-jaw clutch | |
| steering system |
steering wheel control, differential steering system |
|
| Minimum turning radius | 3M | |
| Brake mode | hydraulic disc brakes | |
| Transmission mode | shaft , flexible connection | |
| Harvesting unit | Cutting width | 1400mm |
| Cutting platform lifting mode | Electric (self-locking) | |
| Binding height: | 750px up stubble | |
| Total loss rate | ≤1% | |
| Bundling rate | ≥95% | |
|
Productivity |
0.4hm2/h | |
| Fuel consumption | 1.8-2.3L/H | |
Shengchuan Machinery is one of the leading Reaper Binder manufacturers and suppliers, we can offer you lower price four-wheel reaper binder cutting rice and wheat in dry land or paddy field higher efficiency. Welcome to buy discount products at best price form our factory.
