Soybean Reaper Wheat Rice Harvester Paddy Reaper Grain Harvester Wheat Paddy Harvester Basic Info
Application: Wheat, Soybean
Application Field: Agriculture
Bore*Stroke: 78*62
Origin: China
Type: Hand-Type Harvester
Power Source: Gasoline
Rated Power: 6.0HP
Cutting Width: 1200 Mm
Specification: ccc
Soybean Reaper Wheat Rice Harvester Paddy Reaper Grain Harvester Wheat Paddy Harvester Product Description

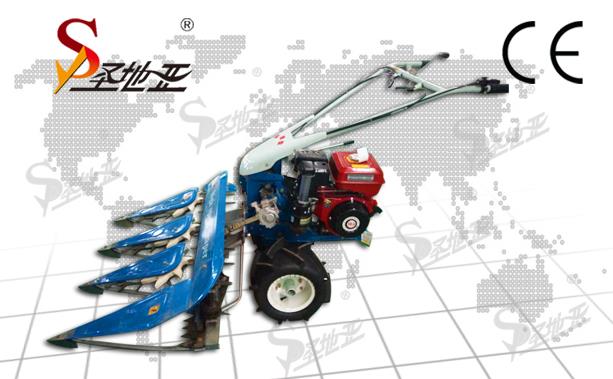

PADDY reaper Grain Harvester
Soybean Reaper Wheat Rice Harvester Paddy Reaper Grain Harvester Wheat Paddy Harvester Features:
Reaper for rice (paddy or grain)
For the engine you have two options:
A) Diesel engine: KM178FS
B) Gasoline engine: EY28C
1 Particularly suitable for small plots, mountains, hills
2 use for the straw utilization of harvesting. Ice wheat reed and soybean
3 it has a simple structure, easy to operate and conveinent to repair
4 small size, light weight, low energy consumption,
5 stable performance, good reliability and applicability
| Model | AM-120 |
| Cutting width | 1200 mm |
| Production capacity | 0.3 ~ 0.53 Ha./H |
| Stubble height | 30 ~ 120 mm |
| Speed | 3 ~ 4 km/h |
| Engine (6Hp) | Diesel Engine(KM178FS |
| Weight (kg) | 220 |
| Diesel Engine Model | KM178FS |
| Diesel Engine Type | Single cylinder, vertical, 4-stroke, Air-cooled |
| Bore*Stroke [mm(in)] | 78*62 (3.07*2.44) |
| Displacement [cc (cu.in)] | 296(18.06) |
| Compression rate | 20:1 |
| Rated output [kw(HP)/rpm] | 4.4 (6.00 ) / 1800 |
| Fuel | 0# or 10# light diesel oil |
| Fuel tank capacity [L(gal.)] | 3.5 (0.77) |
| Fuel Consumption (g/kw.h) | 285 |
| Lubrication oil capacity [L(gal.)] | 1.1 (0.24) |
| Lub. Oil type | SEA10W30 (above CC grade) |
| Starting system | Recoil |
|
Overall dimension (L*W*H) [mm(in)] |
383×421×450 (15.08×16.57×17.72) |
| Dry weight [kg(lbs.)] | 33 (72.6) |
