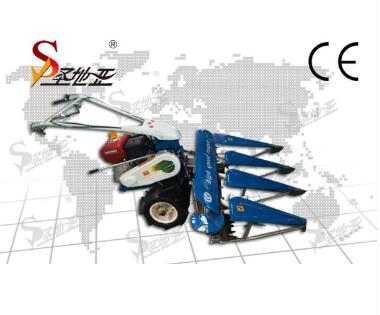

Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Basic Info
Model NO.: tns
Application Field: Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Power Source: Diesel
Traction Type: Traction
Arbor Configuration: Vertical Shaft
Color: Upon Your Request
Package: Wood Case
Origin: Shandong, China
Reaper Type: Rotary Tiller
Farming Policy: Wet and Dry Field
Operation: Soil Preparation Machinery, Movable Operation
Reaper Drive Type: Gear Drive
Certification: SGS, ISO9001
Specification: CCC/ CE
HS Code: 8701100000
Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Product Description
Power Tiller Model |
TNS-80 |
|
CHASSIS | ||
Over Dimensions(mm) |
2050x710x1235 |
|
Weight (without engine) |
179 Kg |
|
|
Tilling Width and No/s of Blades |
Optional |
Standard 480mm(18-1/8in) 14 Blades |
Max 600mm(23-5/8in) 16 Blades | ||
Speeds |
Forward |
6 speeds |
Reverse |
2 speeds |
|
Tilling |
4 speeds (2 speeds by changing auxiliary sprockets) |
|
Tires |
5-12 |
|
Brake |
Inner Expansion Type |
|
Main Clutch |
Dry Multi-plate Type |
|
Steering Clutch |
Claw Type Clutch |
|
Power Transmission System |
Engine to Main Shaft: 2V-Belts |
|
Main shaft to wheel Axle: Gear | ||
Transmission to Blade Axle: Chain | ||
Wheel Tread |
390-780mm(15-3/8~30-3/4in) |
|
ENGINE | ||
Mounted Engine |
For Use with TNS-80 Chassis |
|
Engine model |
RV80 (Original Viet Nam VIKYNO, Direct Injection) |
|
Type |
Horizontal Water Cooling 4 Stroke Single Cylinder Diesel Engine |
|
BorexStock(mm) |
82x84 |
|
Rated Output(HP/RPM) |
7.0/2200 |
|
Maximum |
8.0/2400 |
|
Fuel (L) |
Light Diesel Oil (9L) |
|
Lubricating Oil (L) |
SAE30,20,10W-30 (2L) |
|
Starting System |
Double Speed Handle Manual |
|
Cooling System |
Radiator Cooling |
|
Engine Weight |
79 Kg |
|
Specific Fuel Consumption |
185g/HP.hr at continuous rated output |
|
Cooling Water Capacity (L) |
1.6 |
|
CONTAINER LOADING |
30 units |
|
80 units | ||
Tns Power Tiller Walking Tractor and Reaper Binder Tns Hotsale Main Specification for TNS-80 (Kubota Model) Power Tiller
| EINGEN MODEL | CP120 |
| Type | Water-cooled, 4-stroke, horizontal, diesel engine |
| Bore x stroke (mm) | 94 x 90 |
| Displacement(cc) | 624 |
| Compression ratio | 21:1 |
| Combustion chamber type | Swirl-chamber |
| Rated output hp(kW) | 11(8.09) |
| Max output hp(kW) | 12(8.8) |
| Rated speed ( rpm ) | 2400 |
| Max torque (N.m) | 38.2(3.9) |
| Speed at max.torque ( rpm ) | 1850 |
| Fuel consumption at rated output g/kWh( g/hph ) | 286 ( 210 ) |
| Fuel tank capacity (L) | 10 |
| Lubrication method | Pressure combined with splashing |
| Cooling system | Radiator type |
| Fuel tank capacity (L) | 10 |
| Crankcase oil capacity (L) | 2.3 |
| Cooling water capacity (L) | 2.1 |
| Starting method | Hand starting or electric starting |
| Head lamp | 12V 45W/45W |
